  • ODX SMALL SUBMERSIBLE PUMP

    Description

    Product Overview

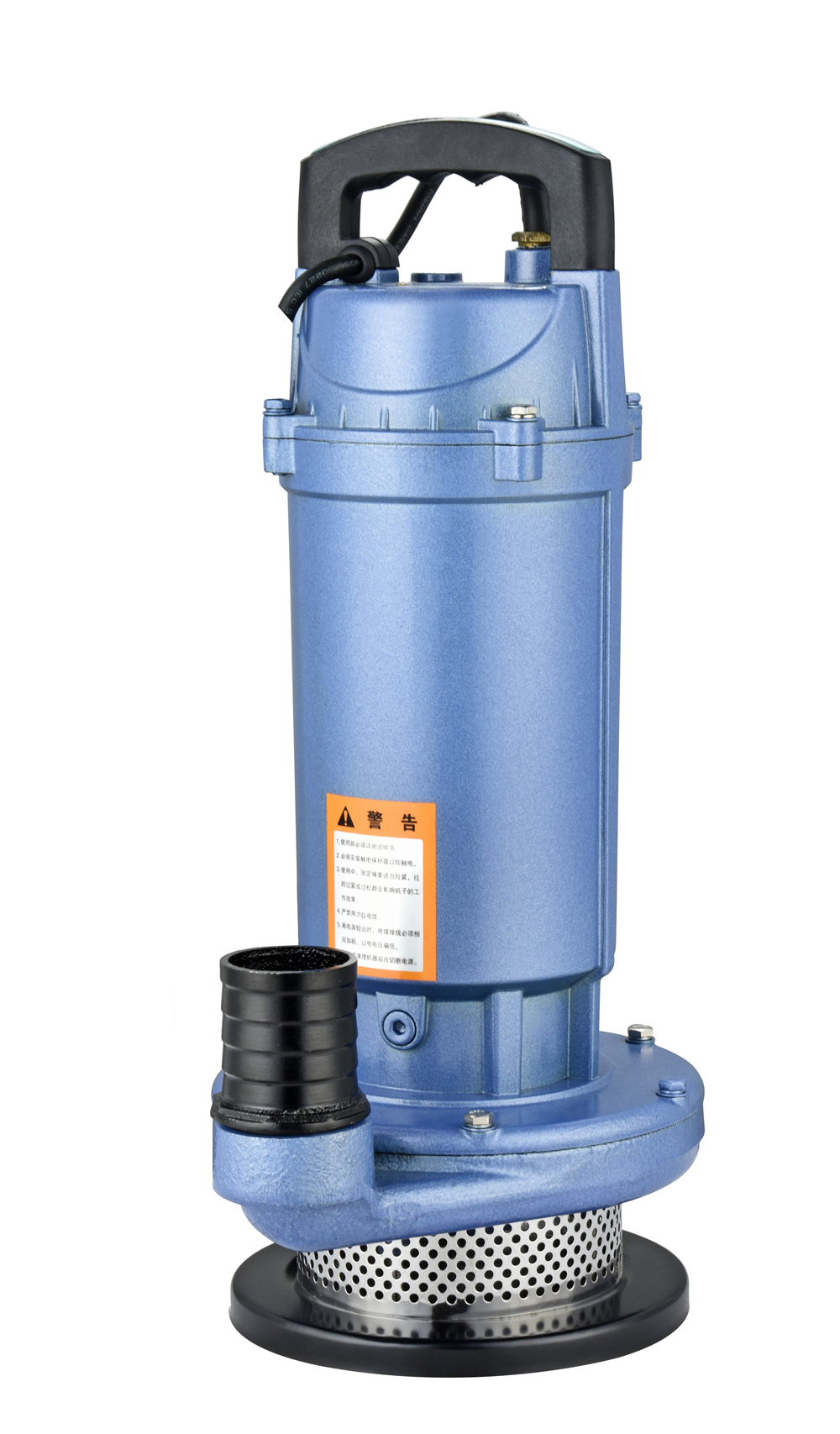

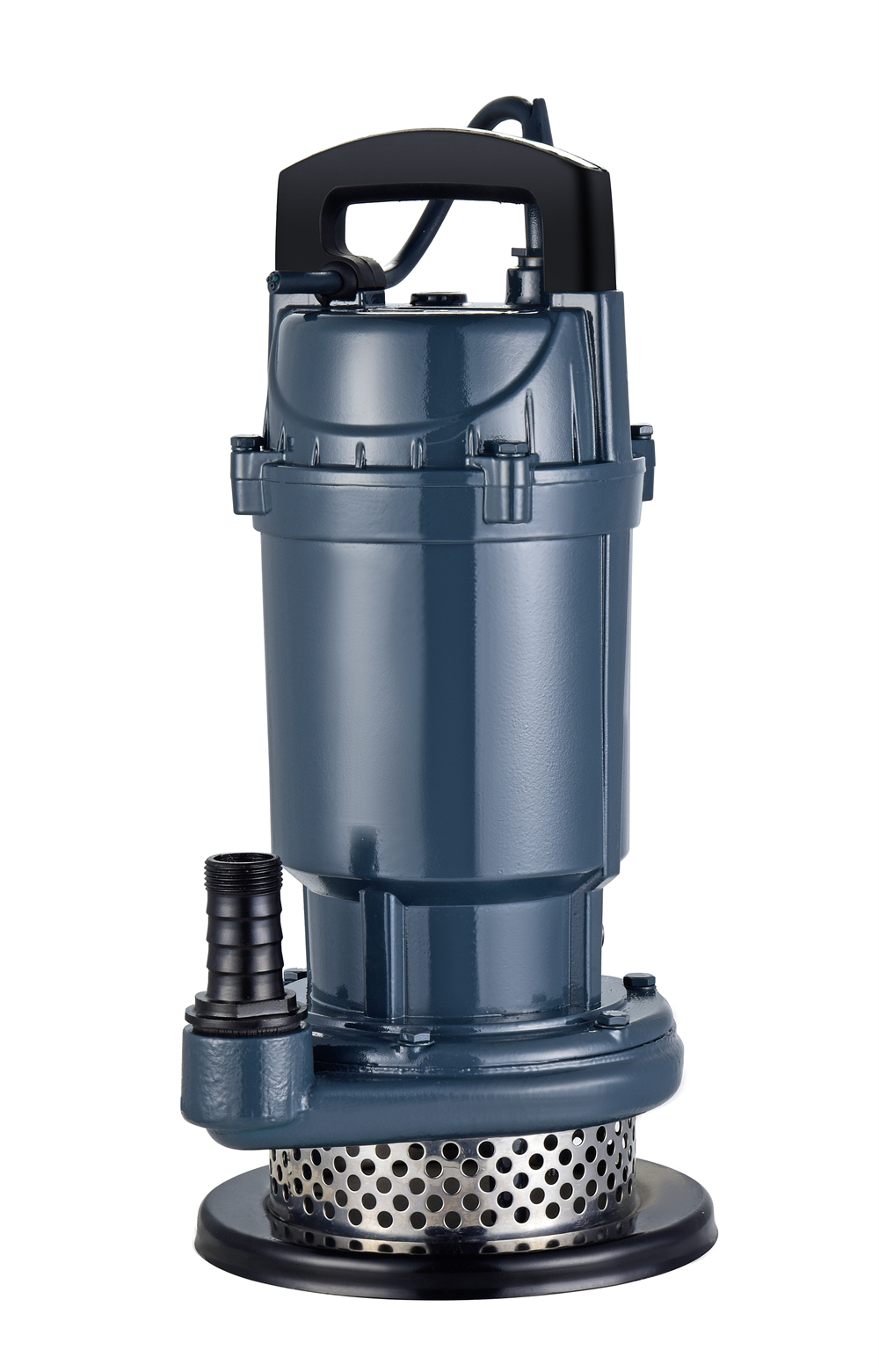

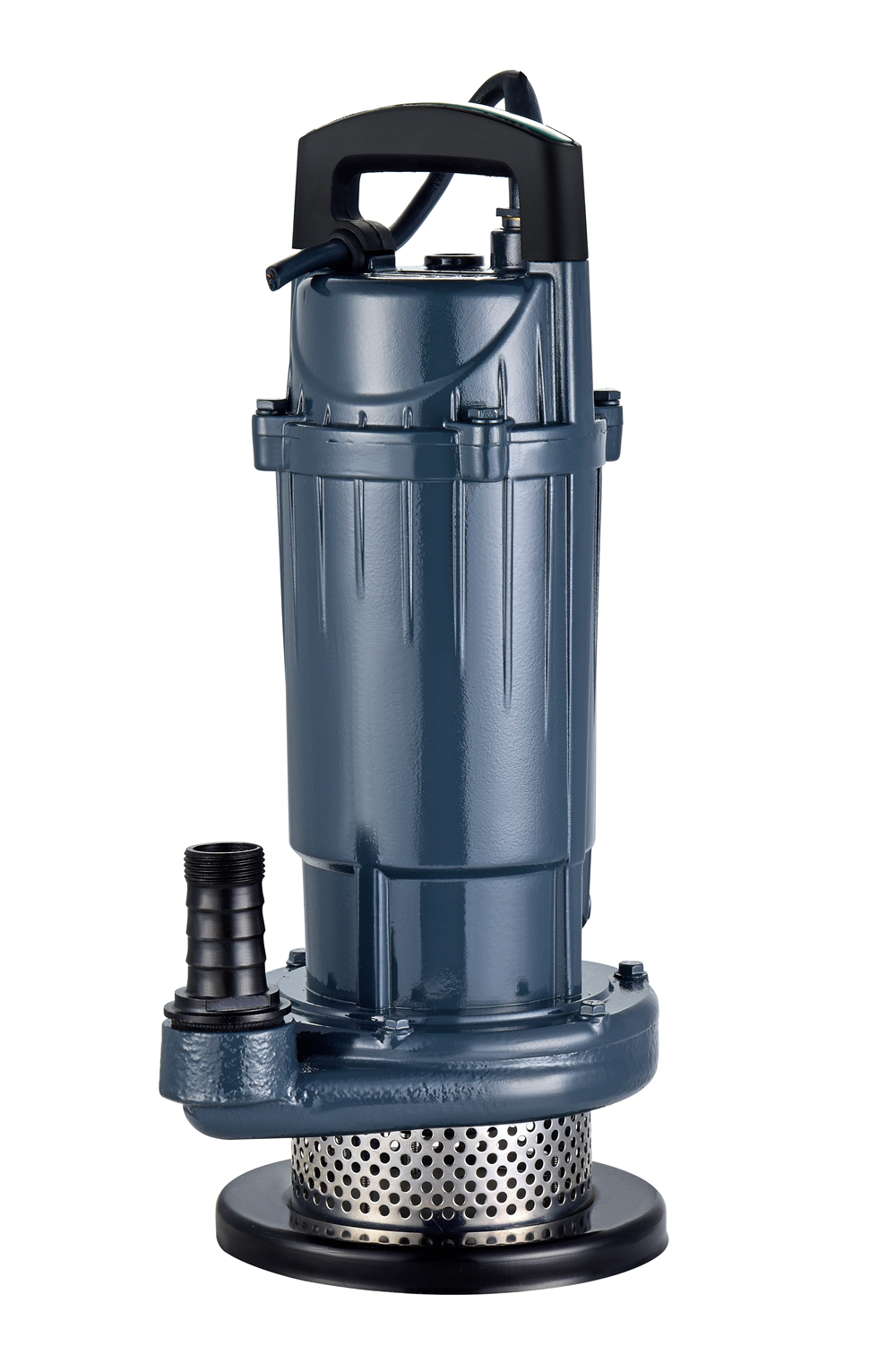

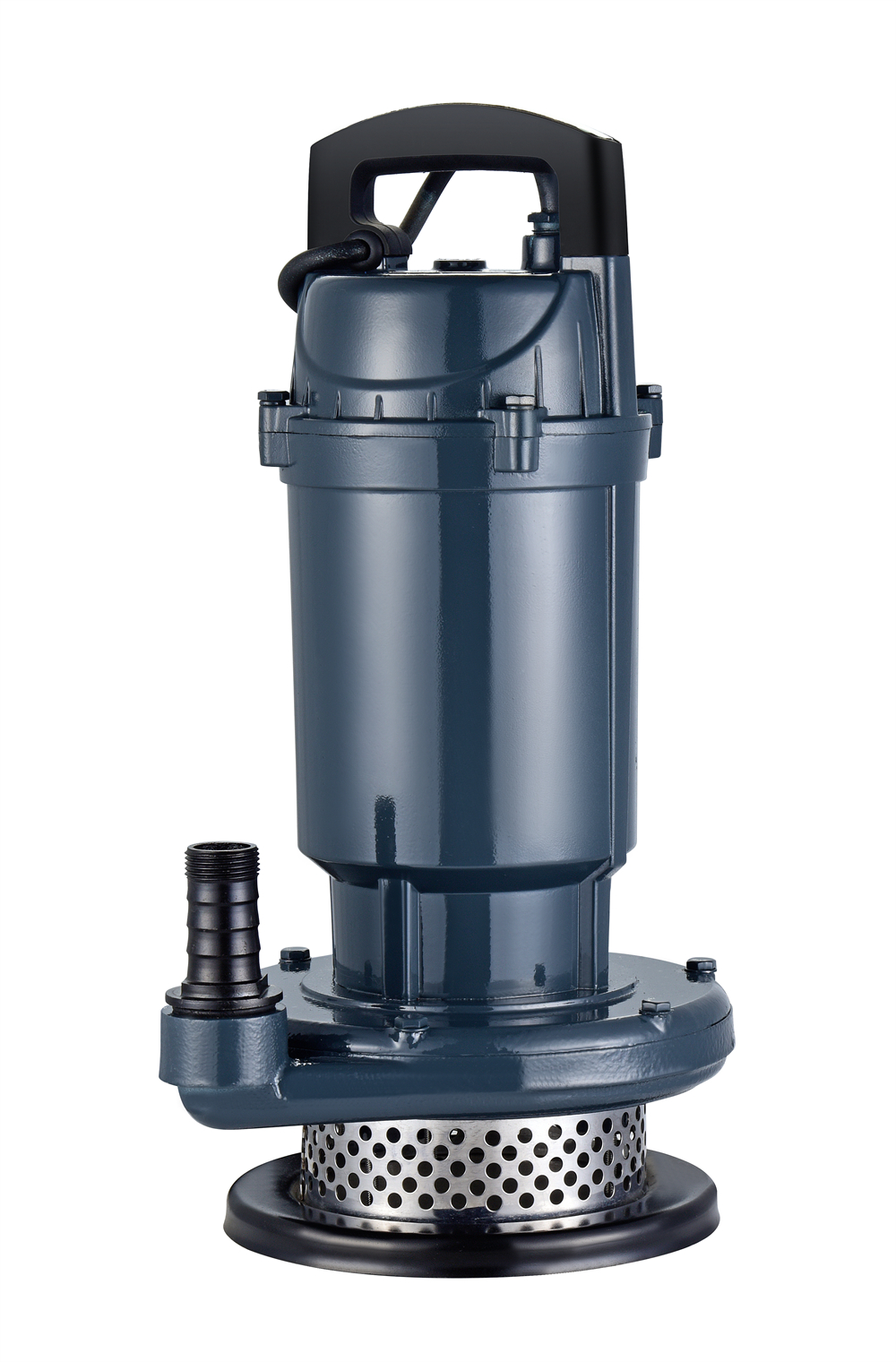

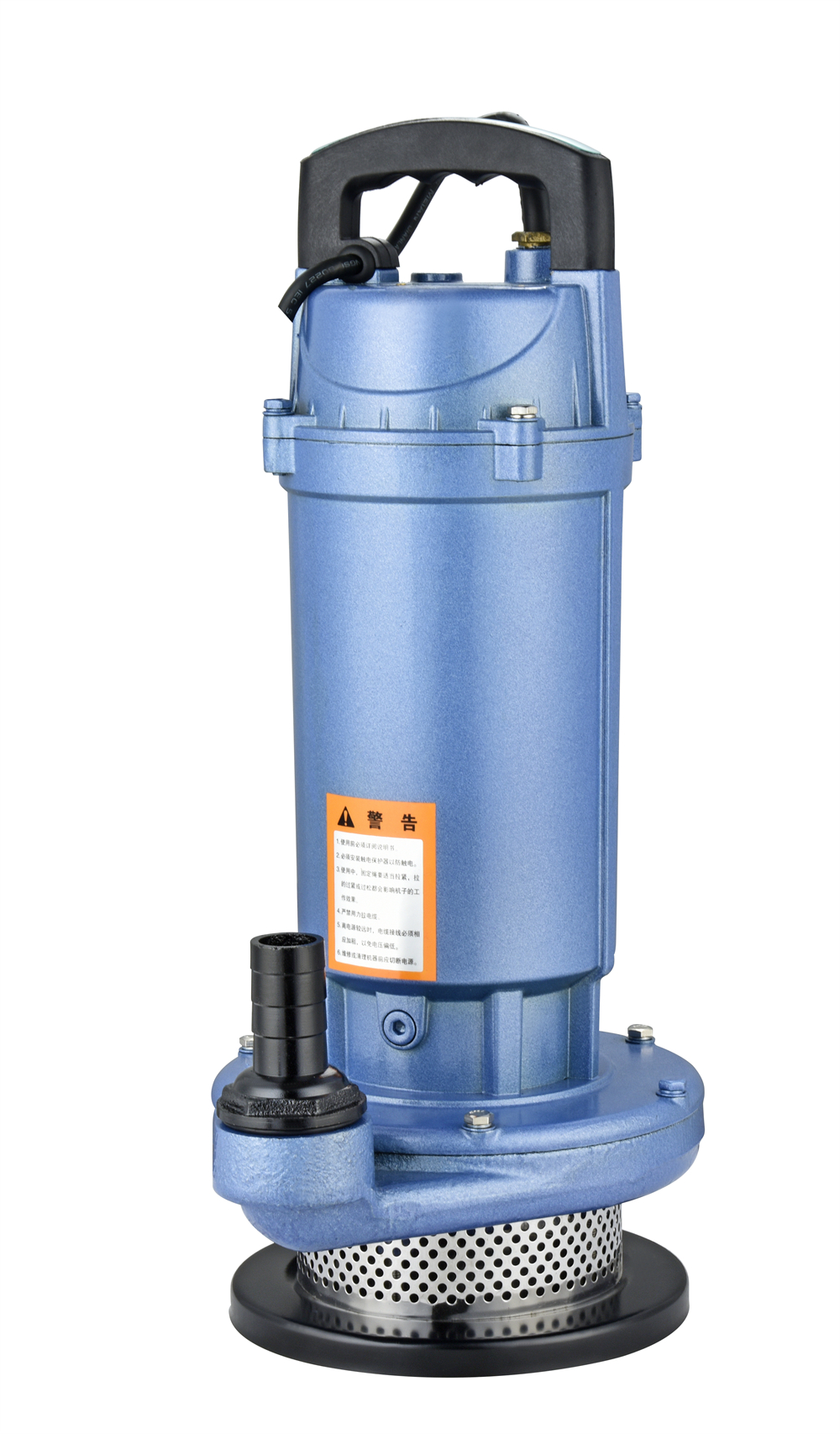

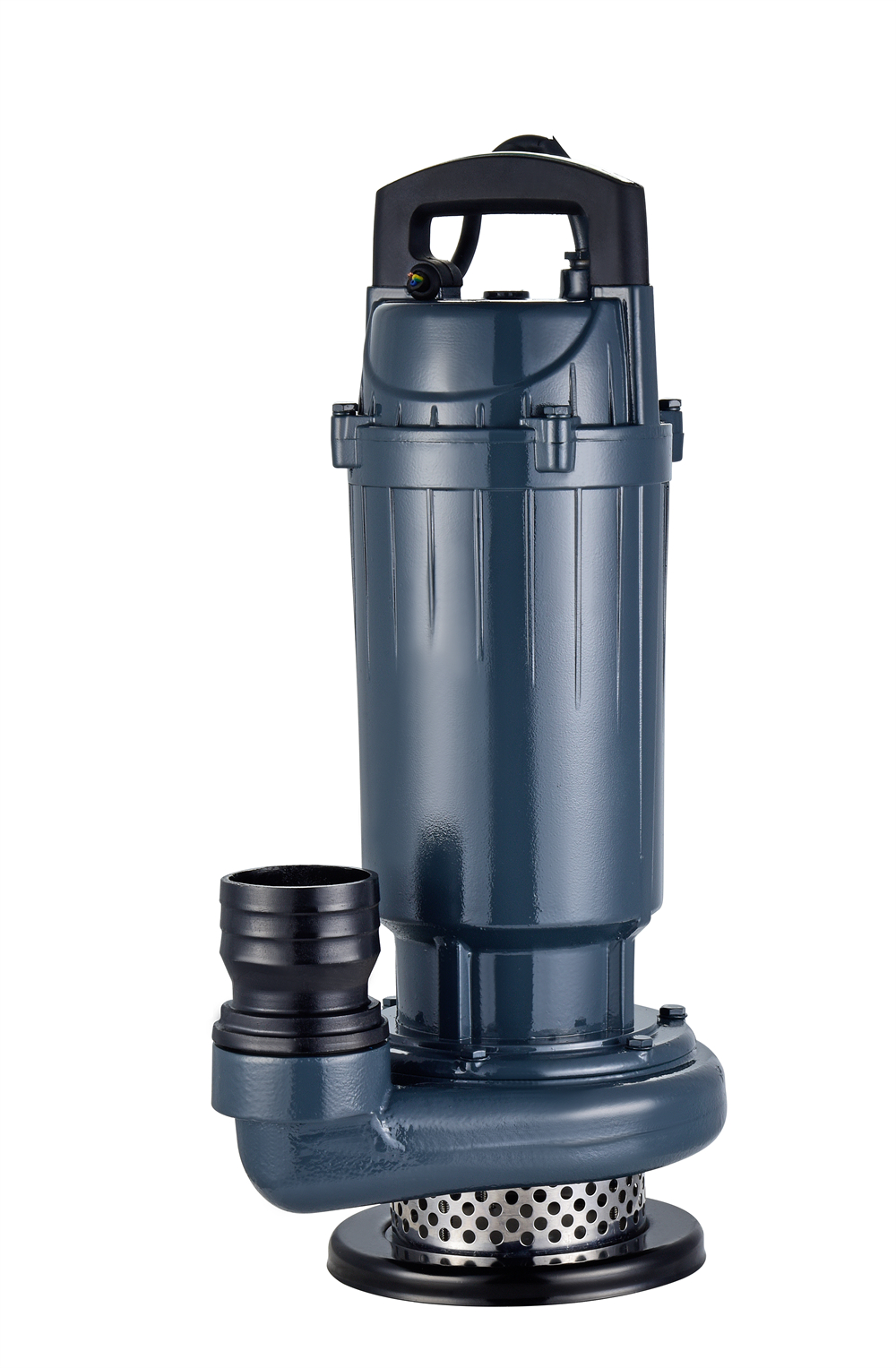

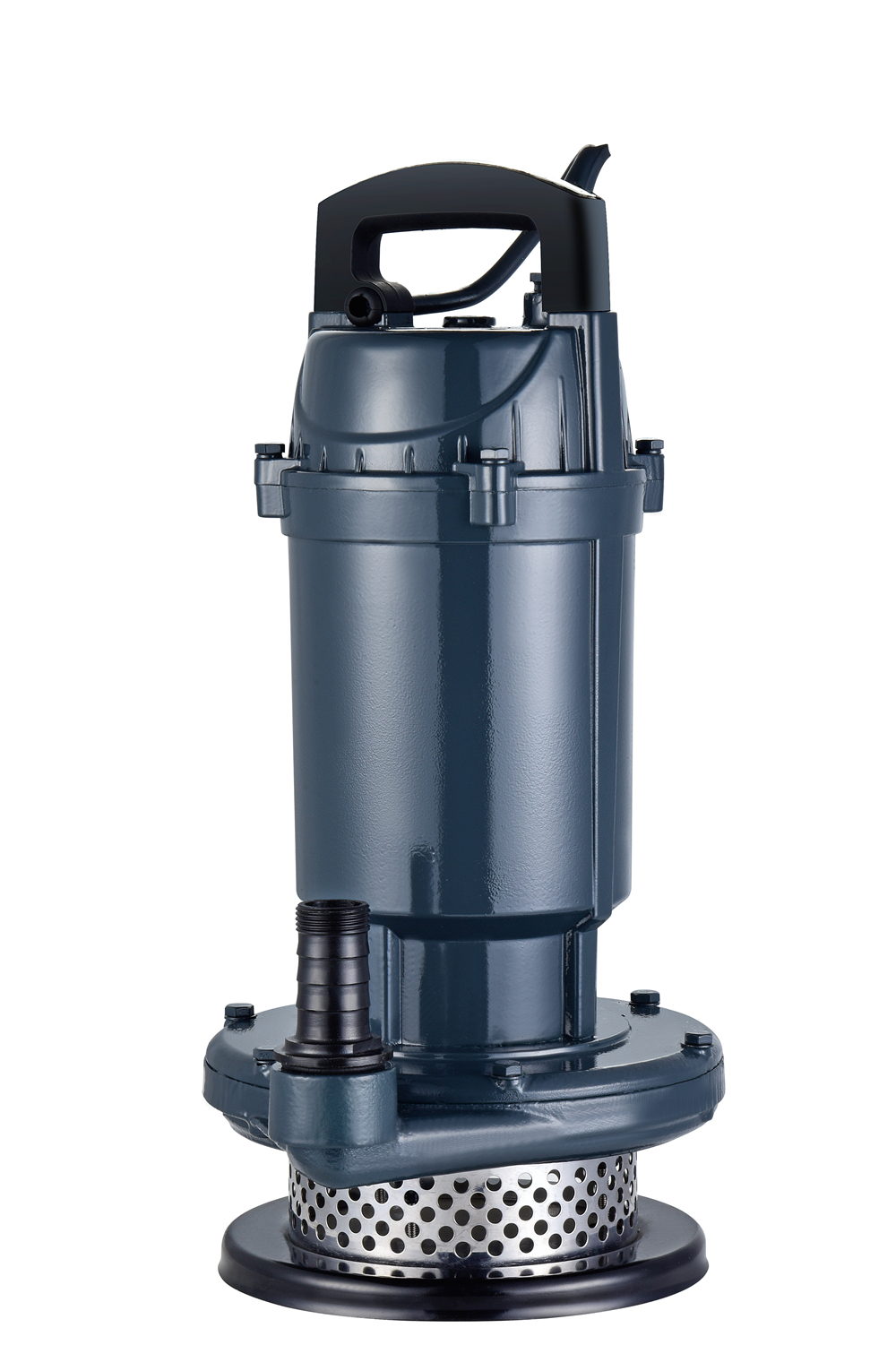

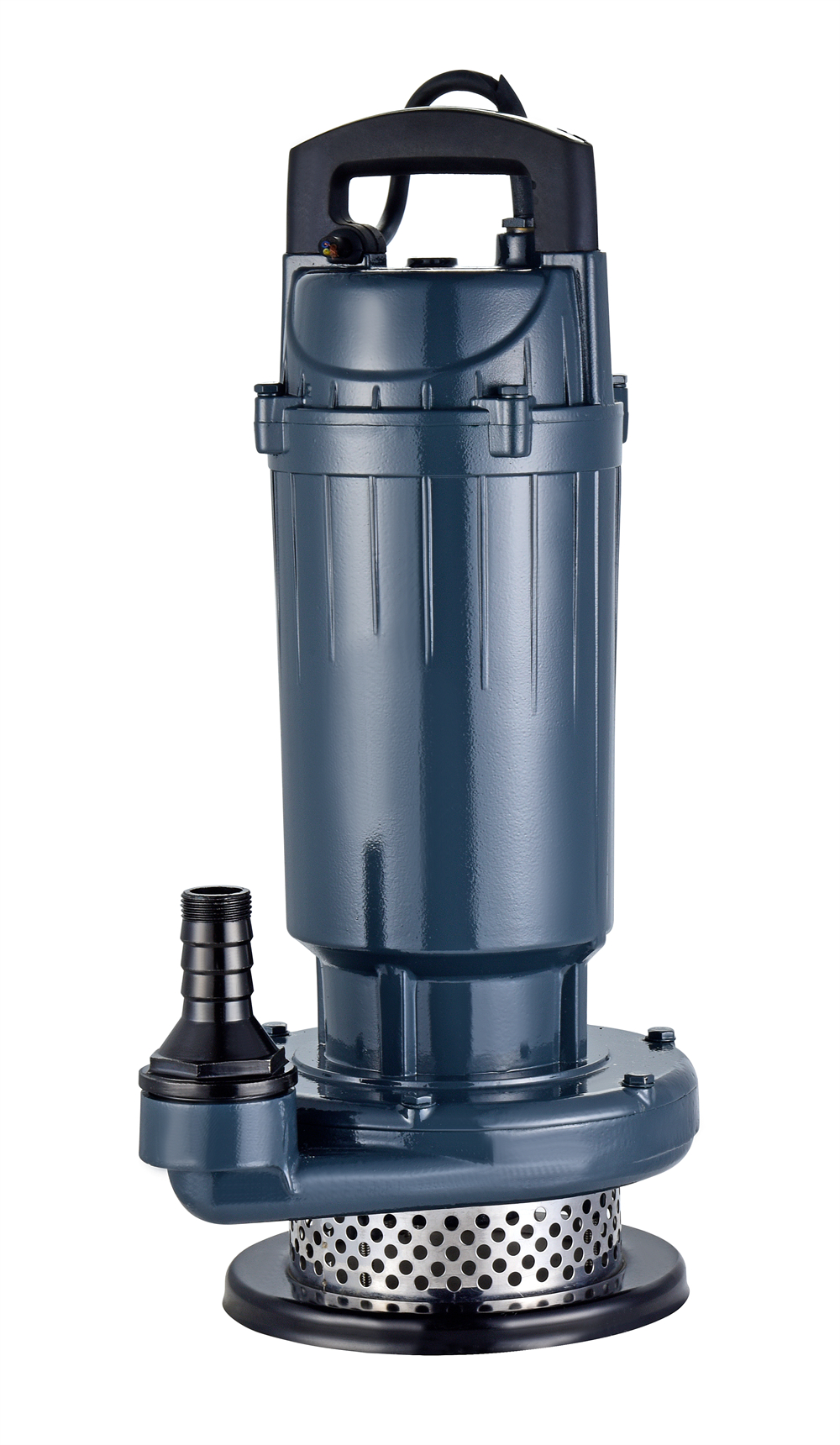

        QDX small submersible pump is composed of water pump, sealing part and dry asynchronous motor, which is mainly used for water supply and drainage in agriculture and other occasions. The electric pump has the characteristics of small size, light weight, convenient movement, simple installation, high efficiency and energy saving, durability and so on.

    Six advantages:

    1. The motor adopts double-channel seal to basically eliminate the possibility of water pump leakage.

    2. The combination of all corrosion resistant parts, the corrosion resistance performance of the water pump is far improved,

    3. Optimize the reasonable motor design, lower temperature rise, difficult to burn the machine.

    4. Use of advanced energy-saving design, low power consumption, long-term use is more economical.

    5. The design idea of sewage pump can pump mild corrosion resistant medium, and the use range is wider.

    6. The new submersible pump is more exquisite and more durable.

    Conditions of use

    1. The diving depth of the electric pump should be between 0.5-5 meters, and the distance from the bottom shall not be less than 0.5 meters:

    2. The volume ratio of solid impurities in water shall not exceed 0.1% and the particle size shall not be greater than 0.2 mm; such as clear water, lake, well water, etc.

    3. Water temperature does not exceed + 40C:

    4. Power supply frequency 50Hz, three-phase voltage 380V, voltage fluctuation pattern between 342V-418V QX type): power supply frequency 50H memory, single-phase voltage 220V, voltage fluctuation range between 180V-240V (QDX type):

    5. The PH value of water is 6.5-8.5:

    6. Use it within the specified lift range.




                    型號/Type額定流量Rated flow(m/h)額定揚程Rated head(m)額定功率Rated power(KW)額定電壓Rated voltage(V)同步轉速Synchrinous speed(r/min)配管()Piping(inch)
                    QDX1.5-15-0.37                1.5                15                0.37                220                2850                1
                    QDX3-20-0.55                3                20                0.55                220/380                2850                1
                    QDX10-10-0.55                10                10                0.55                220/380                2850                1.5
                    QDX15-7-0.55                15                7                0.55                220/380                2850                2
                    QDX3-24-0.75                3                24                0.75                220/380                2850                1
                    QDX7-18-0.75                7                18                0.75                220/380                2850                1.5
                    QDX10-15-0.75                10                15                0.75                220/380                2850                2
                    QDX15-10-0.75                15                10                0.75                220/380                2850                2.5
                    QDX30-6-0.75                30                6                0.75                220/380                2850                3
                    QDX3-30-1.1                3                30                1.1                220/380                2850                1.5
                    QDX6-26-1.1                6                26                1.1                220/380                2850                1.5
                    QDX10-18-1.1                10                18                1.1                220/380                2850                2
                    QDX15-14-1.1                15                14                1.1                220/380                2850                2.5
                    QDX40-6-1.1                40                6                1.1                220/380                2850                3
                    QDX6-33-1.5                6                33                1.5                220/380                2850                1.5
                    QDX15-18-1.5                15                18                1.5                220/380                2850                2
                    QDX25-12-1.5                25                12                1.5                220/380                2850                2.5
                    QDX40-8-1.5                40                8                1.5                220/380                2850                3
                    QDX65-7-2.2                65                7                2.2                220/380                2850                4


    Product Overview

        QDX small submersible pump is composed of water pump, sealing part and dry asynchronous motor, which is mainly used for water supply and drainage in agriculture and other occasions. The electric pump has the characteristics of small size, light weight, convenient movement, simple installation, high efficiency and energy saving, durability and so on.

    Six advantages:

    1. The motor adopts double-channel seal to basically eliminate the possibility of water pump leakage.

    2. The combination of all corrosion resistant parts, the corrosion resistance performance of the water pump is far improved,

    3. Optimize the reasonable motor design, lower temperature rise, difficult to burn the machine.

    4. Use of advanced energy-saving design, low power consumption, long-term use is more economical.

    5. The design idea of sewage pump can pump mild corrosion resistant medium, and the use range is wider.

    6. The new submersible pump is more exquisite and more durable.

    Conditions of use

    1. The diving depth of the electric pump should be between 0.5-5 meters, and the distance from the bottom shall not be less than 0.5 meters:

    2. The volume ratio of solid impurities in water shall not exceed 0.1% and the particle size shall not be greater than 0.2 mm; such as clear water, lake, well water, etc.

    3. Water temperature does not exceed + 40C:

    4. Power supply frequency 50Hz, three-phase voltage 380V, voltage fluctuation pattern between 342V-418V QX type): power supply frequency 50H memory, single-phase voltage 220V, voltage fluctuation range between 180V-240V (QDX type):

    5. The PH value of water is 6.5-8.5:

    6. Use it within the specified lift range.




                    型號/Type額定流量Rated flow(m/h)額定揚程Rated head(m)額定功率Rated power(KW)額定電壓Rated voltage(V)同步轉速Synchrinous speed(r/min)配管()Piping(inch)
                    QDX1.5-15-0.37                1.5                15                0.37                220                2850                1
                    QDX3-20-0.55                3                20                0.55                220/380                2850                1
                    QDX10-10-0.55                10                10                0.55                220/380                2850                1.5
                    QDX15-7-0.55                15                7                0.55                220/380                2850                2
                    QDX3-24-0.75                3                24                0.75                220/380                2850                1
                    QDX7-18-0.75                7                18                0.75                220/380                2850                1.5
                    QDX10-15-0.75                10                15                0.75                220/380                2850                2
                    QDX15-10-0.75                15                10                0.75                220/380                2850                2.5
                    QDX30-6-0.75                30                6                0.75                220/380                2850                3
                    QDX3-30-1.1                3                30                1.1                220/380                2850                1.5
                    QDX6-26-1.1                6                26                1.1                220/380                2850                1.5
                    QDX10-18-1.1                10                18                1.1                220/380                2850                2
                    QDX15-14-1.1                15                14                1.1                220/380                2850                2.5
                    QDX40-6-1.1                40                6                1.1                220/380                2850                3
                    QDX6-33-1.5                6                33                1.5                220/380                2850                1.5
                    QDX15-18-1.5                15                18                1.5                220/380                2850                2
                    QDX25-12-1.5                25                12                1.5                220/380                2850                2.5
                    QDX40-8-1.5                40                8                1.5                220/380                2850                3
                    QDX65-7-2.2                65                7                2.2                220/380                2850                4


    go back
    A variety of products, complete specifications. Since the establishment of the factory, after continuous exploration and accumulation, more than a dozen series and dozens of specification products have been developed, which are widely used in increasing oxygen in fish ponds, farmland drainage and irrigation, building foundation cleaning, environmental protection chemical industry and household water supply, etc.
